QA1's complete lowering kit transforms your F-150 with aggressive stance and precision handling. The front features adjustable Pro Coil coilovers paired with drop spindles for maximum customization, while the rear flip kit with shackle/hanger maintains ride comfort. Independent compression and rebound adjustability on the double-adjustable shocks lets you dial in perfect performance—whether cruising streets or attacking the track. Drop your truck and elevate your control.
Full-range stance control: Front coilovers with spindles deliver a 3"–5" drop; rear system delivers 3.5"–5.5" with 1" increments for perfect rake.
Heavy-duty build for trucks: Upgraded shock bodies, poly bushings, and a 1" chromoly T-bar handle modern F-150 weight and payload.
Track-grade tuning: Double-adjustable shocks (independent C/R) sharpen response and let you dial comfort vs. control.
Bolt-in simplicity: No welding; engineered brackets and hardware for a clean, reversible install.
Ride quality up, not down: Geometry + valving work together for composed daily driving and confident cornering.
Best-in-class coverage: Lifetime shock warranty.
Made in USA: Designed and built in Lakeville, Minnesota.
Front: 3"–5" (with included drop spindles)
Rear: 3.5"–5.5", adjustable in 1" steps
4×4 note: Rear drop is effectively ~1" more vs. 2WD due to removal of the OE block.

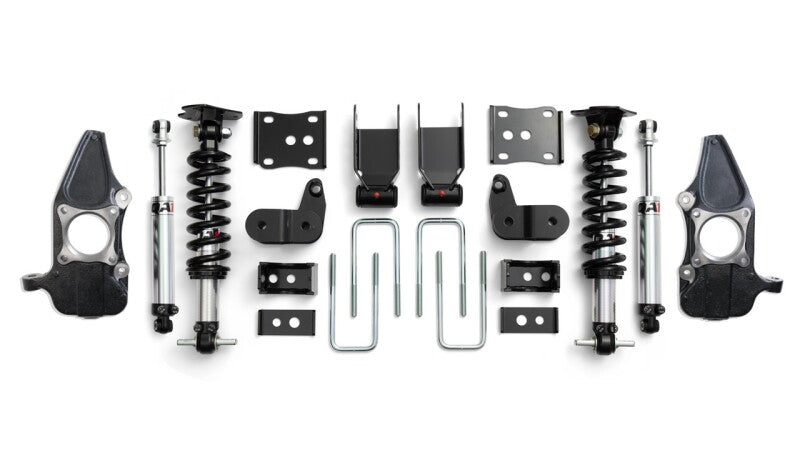

Ford F-150 2015–2020 (2WD & 4×4 rear compatibility noted below)

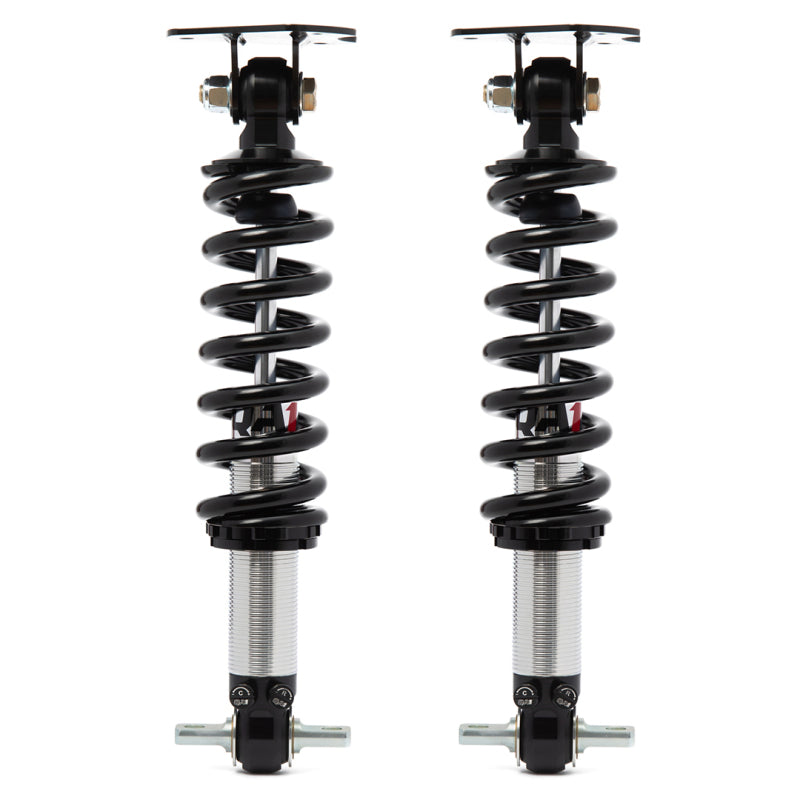

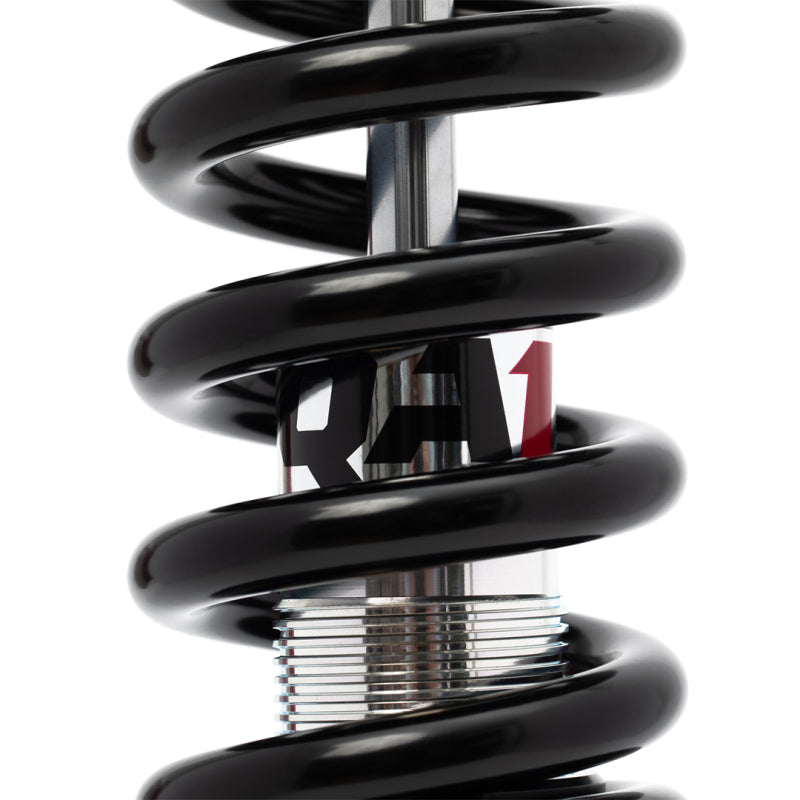

QA1 Pro Coil front coilovers (heavy-duty assemblies with 1" chromoly T-bar & poly bushings)
Front drop spindles (OE/aftermarket compatible)
Rear flip brackets + shackle & hanger kits (multi-position)
QA1 double-adjustable shocks (front & rear)
Mounting hardware & instructions
Wheels/tires:
Requires 22" aftermarket wheels or larger with ≤ 6.0" backspacing for guaranteed clearance.
Most factory 20" wheels fit.
Factory 22" wheels do not fit.
Ball-joint trimming may be required depending on wheel diameter/backspacing.
Rear fits both 2WD and 4×4.
Spindles: Compatible with OEM or aftermarket drop spindles (included).
Always verify brake rotor/caliper clearance after mock-up.
Bolt-in system—no welding.
Set initial ride height on the coilovers, then lock collars.
Choose rear shackle/hanger positions to land your target rake.
Alignment required immediately after install (aim for maximum positive caster within spec).
Re-torque after the first 100–300 miles and after aggressive driving.
Adjustability: Front ride height (coilover), rear in 1" increments, double-adjustable shocks (independent compression & rebound)
Front drop: 3"–5" (w/ spindles)
Rear drop: 3.5"–5.5" (1" steps)
Shock design: Heavy-duty QA1 with 1" chromoly T-bar & poly bushings
Warranty: Lifetime shock warranty (manufacturer)
Origin: Made in USA (Lakeville, MN)
Decide final wheel/tire & offset/backspacing before install (clearance drives spindle/arm decisions).
Pick your target rake; set coilover height and rear position to match.
Plan for alignment and headlight aim after lowering.
Street vs. track? Start shocks around mid-clicks, then tune compression for roll control and rebound for ride/oscillation.
